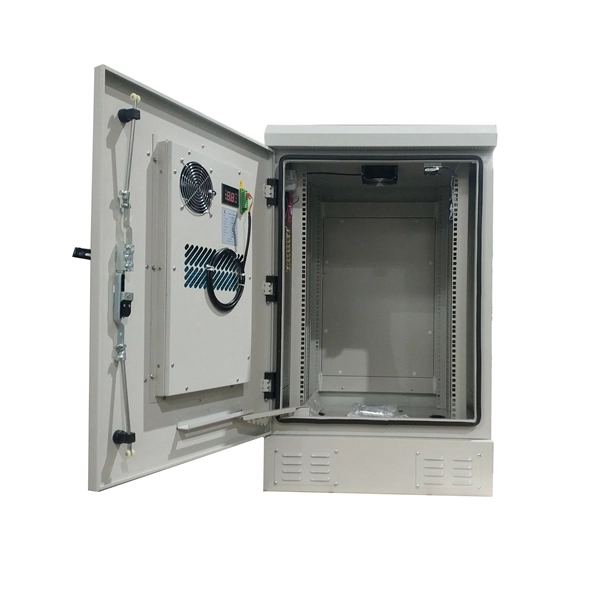

Installing a distribution box in a pre-reserved hole

A distribution box can be safely installed in a pre-reserved hole by aligning it with the reserved opening, securing it properly, and connecting all circuits according to electrical standards.

Preparation and Site Assessment

Before installation, ensure the pre-reserved hole matches the distribution box dimensions and is structurally supported. In modern construction, prefabricated members or lintels are often used to create reserved slots, which avoids chiseling and preserves structural integrity . Verify that the installation site is dry, ventilated, and accessible, away from flammable, corrosive, or high-humidity areas .

Tools and Materials

Prepare the necessary tools: screwdrivers, wire strippers, multimeter, insulation resistance tester, and mounting hardware. Inspect the distribution box and accessories (brackets, screws, terminal blocks) to ensure they are undamaged. Use wires, ties, and insulating tape that meet electrical specifications .

Installation Steps

1. Positioning the Box: Place the distribution box in the pre-reserved hole, ensuring it is level and aligned with the wall surface. Leave sufficient space around the box for ventilation and future maintenance .
2. Securing the Box: Use expansion bolts or brackets to fix the box firmly. Check for stability and ensure there is no tilt or looseness .
3. Wiring Preparation: Strip insulation from wires to the appropriate length. Follow color coding standards: line to line, neutral to neutral, and ground to ground .
4. Circuit Breaker Installation: Install circuit breakers or fuses according to the electrical load requirements. Ensure each circuit has proper protection .
5. Termination and Connection: Connect input and output wires to the corresponding terminals. Tighten screws securely and avoid wire tangling. Dress wires neatly and secure with cable ties, leaving space for heat dissipation .
6. Labeling and Testing: Label each circuit clearly for future maintenance. Perform insulation resistance tests to verify proper installation before powering on .

Safety Considerations

• Ensure power is completely cut off before starting installation.
• Wear insulating gloves, safety glasses, and slip-resistant shoes to prevent electric shock .
• Avoid damaging the pre-reserved hole or surrounding structure during installation .
• Comply with local electrical codes and standards (NEC, IEC, or local regulations) for safety and reliability .

Final Checks

After installation, verify that the box is secure, circuits are correctly connected, and all protective devices function properly. Ensure the box remains accessible for inspection, maintenance, and future upgrades . By following these steps, a distribution box can be installed efficiently in a pre-reserved hole while maintaining structural integrity and electrical safety.
